rational automatic weighing packaging machine , pine nut bagging machine

Xinxiang Hongyuan Vibration Equipment Co.,Ltd

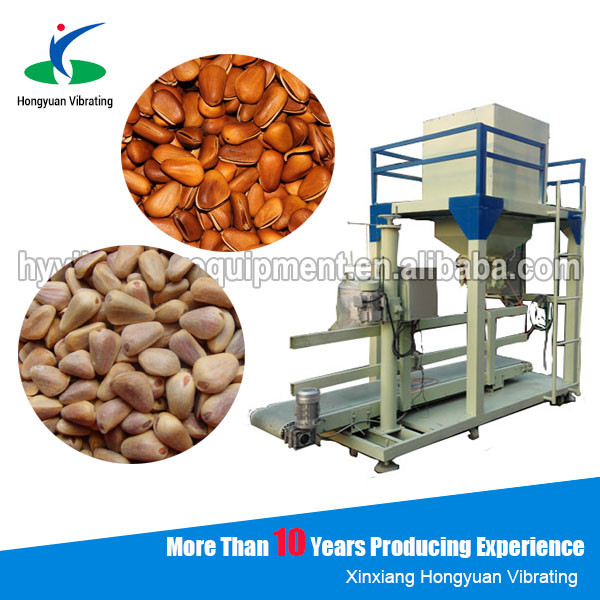

rational automatic weighing packaging machine , pine nut bagging machine

Place of Origin : China, hean,xinxiang

Brand Name : Hongyuan, OEM,ODM

Certification : CE,ISO,3C

Model Number : DCS-50

Type : Multi-Function Packaging Machine

Application : rational automatic weighing packaging machine , pine nut bagging machine

Power : 2.2+0.25+0.37kw

Voltage : AC220V/50HZ AC380V/50HZ

Dimension(L*W*H) : 3000*1300*3300

rated weight : 10kg-80kg

bagging speed : 300-600bag/h

Barometric consumption : 0.5m3/h

Packing Speed : 300-600bag/h

Relatively moisture : ≤90%RH

weighing accuracy : ≤±0.1 or 0.2

Barometric pressure : 0.6MPA

Temperature range : -10~40℃

Function : Filling, Sewing, weighing, pine nut bagging machine

MOQ : 1 set

Price : 5000-7000

Packaging Details : In standard fumigation wooden box and loading to the container

Delivery Time : IN 7~15 days after getting the deposit

Payment Terms : 50% for deposit, and the baleance should be paid before the shipping

Supply Ability : 300 set / month

Shipping terms : FOB Qingdao,tianjin,shanghai,ningbo, or CIF

Contact Now

rational automatic weighing packaging machine , pine nut bagging machine

Product Description

The DCS series rational automatic weighing packaging machine , pine nut bagging machine is one kind of automatic rational weighing, filling, bagging, sewing machine suitable for pine nut bagging and any other granules seed bag sewing. It is the third generation pine nut bagging machine which invented and developed by our own technical team.

Adopts the steel frame with wheel it is easily to be moved from one point to another site in pine nut bagging plant.The bagging and filling weight can be rated from 10-80kg as per your demand.

Main other application

Applied for rational automatic weighing packaging machine , pine nut bagging machine , It has the following features:
1. It is easily to see with digital screen display.
2. Exactly to weight and high precision.
3. Easily to set, memory, modify the weighing scales as per demand .
4. Auto function of count the total filling tons and bag numbers
5. Auto weighing, discharging, clamping the bags.
6. Auto or semi-auto reduce the bags weight exclude the granules

Main Structure

The big volume size can meet the needs of high filling bagging capacity.

With auto sewing machine, you just need to place the full bag below the bag sewing machine side after weighing, than it will automatically working, it can improve the working efficiency.

Automatically clamp the bag by the gas pressure after rational weighing from the hopper

It is easily to see and control with digital screen disply.

Technical Data

Model

DCS-10

DCS-25

DCS-50

Rated Packing Weight(kg)

1-10

10-25

10-50

Division Value(g)

2

5

10

Packing Accuracy

X(0.2)

X(0.1)

X(0.1)

Packing Speed(bag/h)

300-420

300-600

300-420

Power

AC220 150W

Air

Compressed Air0.4-0.8MPa 1m³/h

OEM, ODM Service is supported by our professional technical team.

Working Procedure

Manual Bag placing→Automatic filling→Automatic weighing→Automatic bag conveying→Automatic bag sewing/ sealing by manual assist.

Working Site

Production Flow

Packaging & Shipping

1.Stretch Film inside for water corrosion and fumigation wooden box for outside packing.

2.Loading to the container.

Buying Guides

Please tell us your need on rational automatic weighing packaging machine , pine nut bagging machine so that we can provide you the ideal machine model.

Other main Products

Pine nut husk sieving and cleaning machine (click the picture for details)
